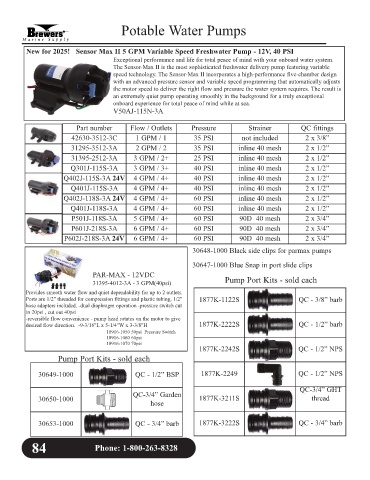

Page 106 - Brewers_Catalogue_2025

Potable Water Pumps

New for 2025! Sensor Max II 5 GPM Variable Speed Freshwater Pump - 12V, 40 PSI
Exceptional performance and life for total peace of mind with your onboard water system.
The Sensor-Max II is the most sophisticated freshwater delivery pump featuring variable
speed technology. The Sensor-Max II incorporates a high-performance five-chamber design
with an advanced pressure sensor and variable speed programming that automatically adjusts
the motor speed to deliver the right flow and pressure the water system requires. The result is
an extremely quiet pump operating smoothly in the background for a truly exceptional
onboard experience for total peace of mind while at sea.
V50AJ-115N-3A

Part number Flow / Outlets Pressure Strainer QC fittings
42630-3512-3C 1 GPM / 1 35 PSI not included 2 x 3/8”
31295-3512-3A 2 GPM / 2 35 PSI inline 40 mesh 2 x 1/2”
31395-2512-3A 3 GPM / 2+ 25 PSI inline 40 mesh 2 x 1/2”
Q301J-115S-3A 3 GPM / 3+ 40 PSI inline 40 mesh 2 x 1/2”
Q402J-115S-3A 24V 4 GPM / 4+ 40 PSI inline 40 mesh 2 x 1/2”
Q401J-115S-3A 4 GPM / 4+ 40 PSI inline 40 mesh 2 x 1/2”
Q402J-118S-3A 24V 4 GPM / 4+ 60 PSI inline 40 mesh 2 x 1/2”
Q401J-118S-3A 4 GPM / 4+ 60 PSI inline 40 mesh 2 x 1/2”
P501J-118S-3A 5 GPM / 4+ 60 PSI 90D 40 mesh 2 x 3/4”

P601J-218S-3A 6 GPM / 4+ 60 PSI 90D 40 mesh 2 x 3/4”
P602J-218S-3A 24V 6 GPM / 4+ 60 PSI 90D 40 mesh 2 x 3/4”
30648-1000 Black side clips for parmax pumps

30647-1000 Blue Snap in port slide clips
PAR-MAX - 12VDC
31395-4012-3A - 3 GPM(40psi) Pump Port Kits - sold each
Provides smooth water flow and quiet dependability for up to 2 outlets.
Ports are 1/2" threaded for compression fittings and plastic tubing, 1/2" 1877K-1122S QC - 3/8” barb
hose adapters included. -dual diaphragm operation -pressure switch cut
in 20psi , cut out 40psi
-reversible flow convenience - pump head rotates on the motor to give
desired flow direction. -9-3/16"L x 5-1/4"W x 3-3/8"H 1877K-2222S QC - 1/2” barb
18916-1050 50psi Pressure Switch
18916-1060 60psi
18916-1070 70psi
1877K-2242S QC - 1/2” NPS
Pump Port Kits - sold each

30649-1000 QC - 1/2” BSP 1877K-2249 QC - 1/2” NPS

QC-3/4” GHT
QC-3/4” Garden
30650-1000 1877K-3211S thread
hose

30653-1000 QC - 3/4” barb 1877K-3222S QC - 3/4” barb

84 Phone: 1-800-263-8328
